X-PAD (MANUALLY)

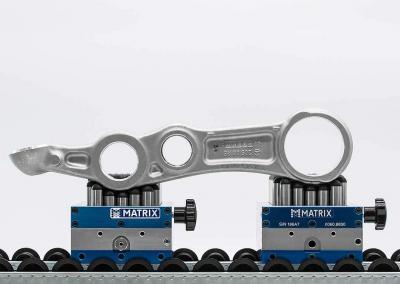

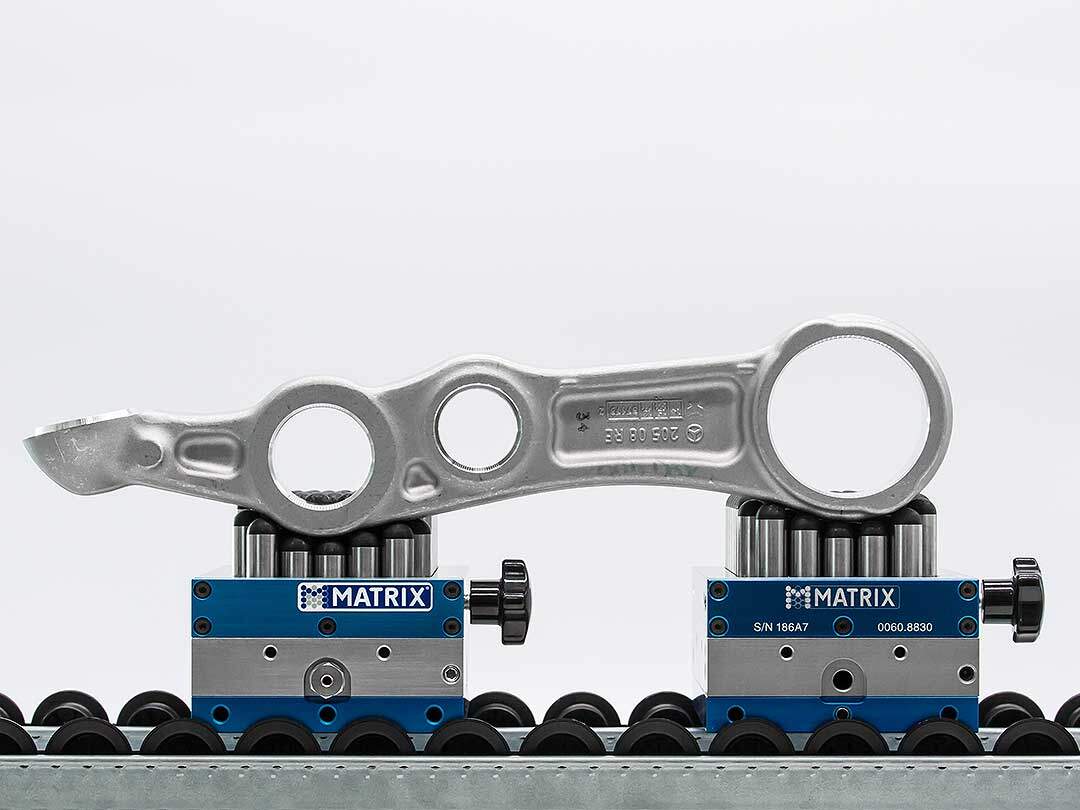

X-PAD Detail

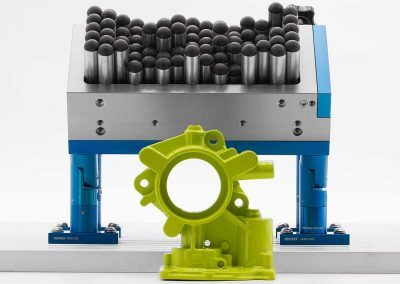

X-PAD Detail
X-PAD Detail

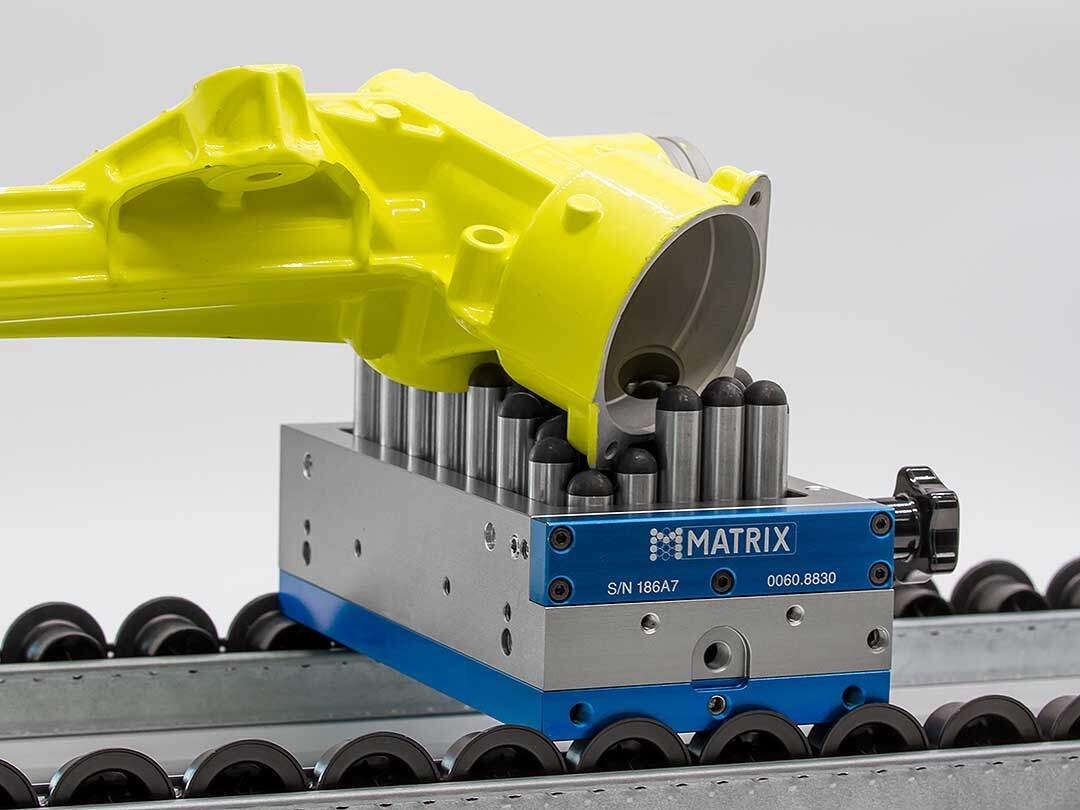

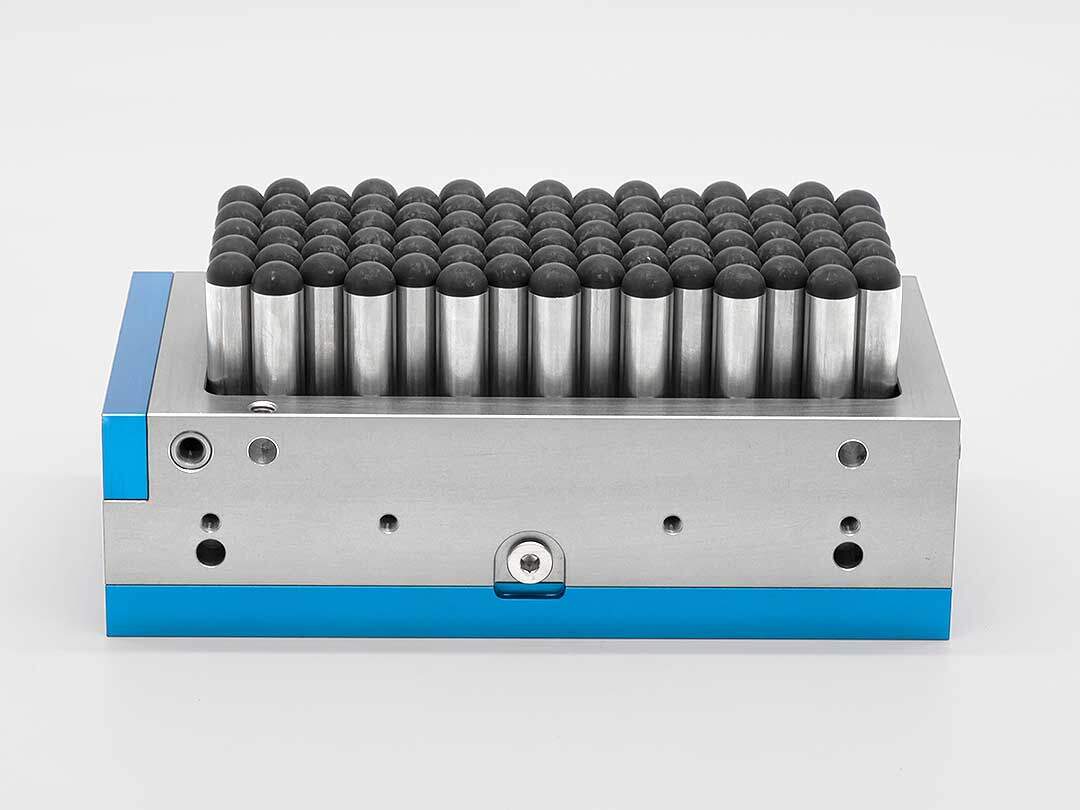

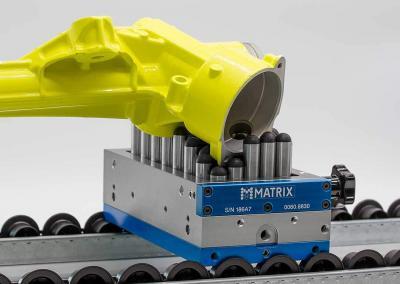

X-PAD

ONE WORKPIECE CARRIER. AN INFINITE NUMBER OF VARIETIES.

  • Form-fitting X-PAD workpiece carrier.
  • It adapts to the most complex contours.
  • Has an extra-large pin field and can be expanded.
  • Can be locked mechanically or automatically.
  • With passive gripping force preservation.

Datasheet X-PAD

Order number: 0060.8830
