QUALITY ASSURANCE WITH MATRIX® MOLD CLAMPING SYSTEMS AT AUMA

THE AUMA Riester GmbH & Co. KG works with MATRIX® mold clamping systems in the field of measurement and quality assurance.

Here, various components with mostly complex casting contours are measured on a 3D coordinate measuring machine.

Here, a wide variety of workpieces with often complex cast contours are being measured on a 3D coordinate measurement machine. With the MATRIX® mold clamping system, the set-up of the necessary, part-specific measurement devices is very easy. A T-slot profile plate of variable size serves as the basis, on which the pin modules can be freely placed. In connection with intermediate elements, angle pieces, cone and prism mountings, the pin modules can be optimally adapted to any workpiece contours. Light components can additionally be stabilized with downholders, horizontal clamps, and vacuum cups. The pins that gently rest on the workpiece are made of stainless steel and, if necessary, can be equipped with soft plastic caps for particularly sensitive components. The modules and intermediate elements are made of aluminum alloys and therefore stable, light, and maintenance-free. The sophisticated and simple structure of the construction kits makes MATRIX® fit for all tasks.

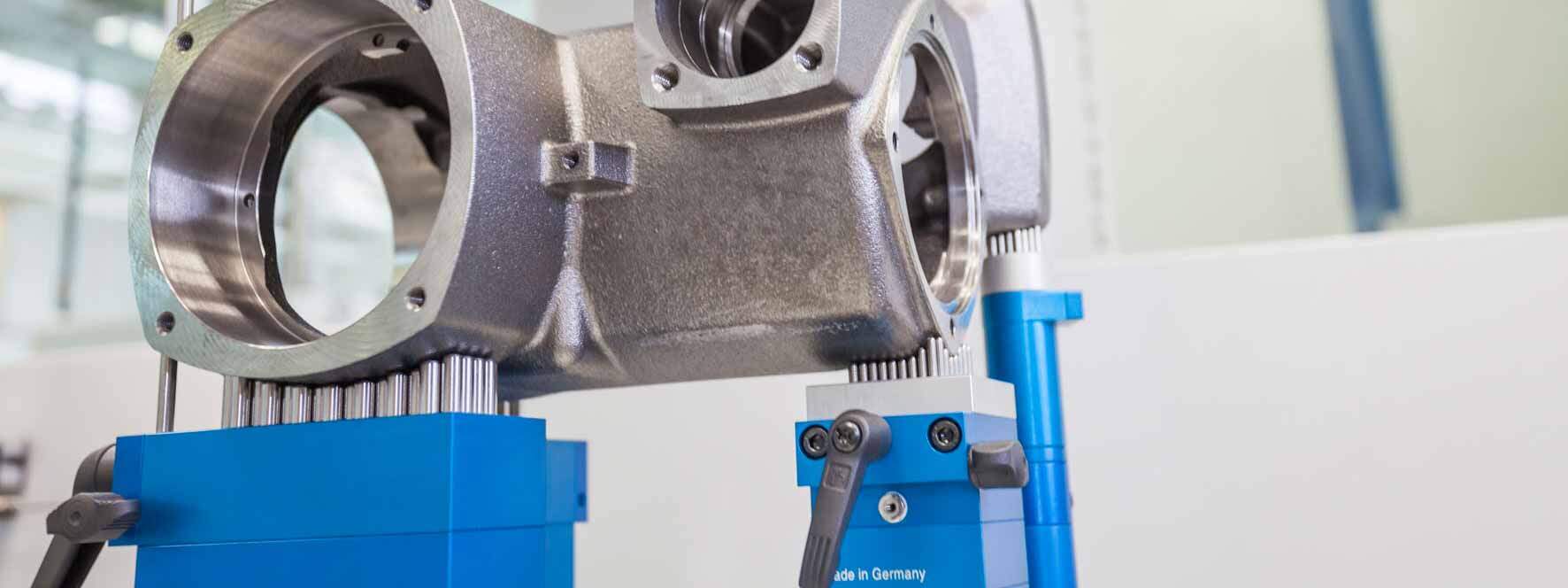

The workpieces rest safely and stably in the MATRIX® device, what helps to accomplish even the most challenging measuring tasks.
