Complementary set VAKUUM – suction of complex workpieces

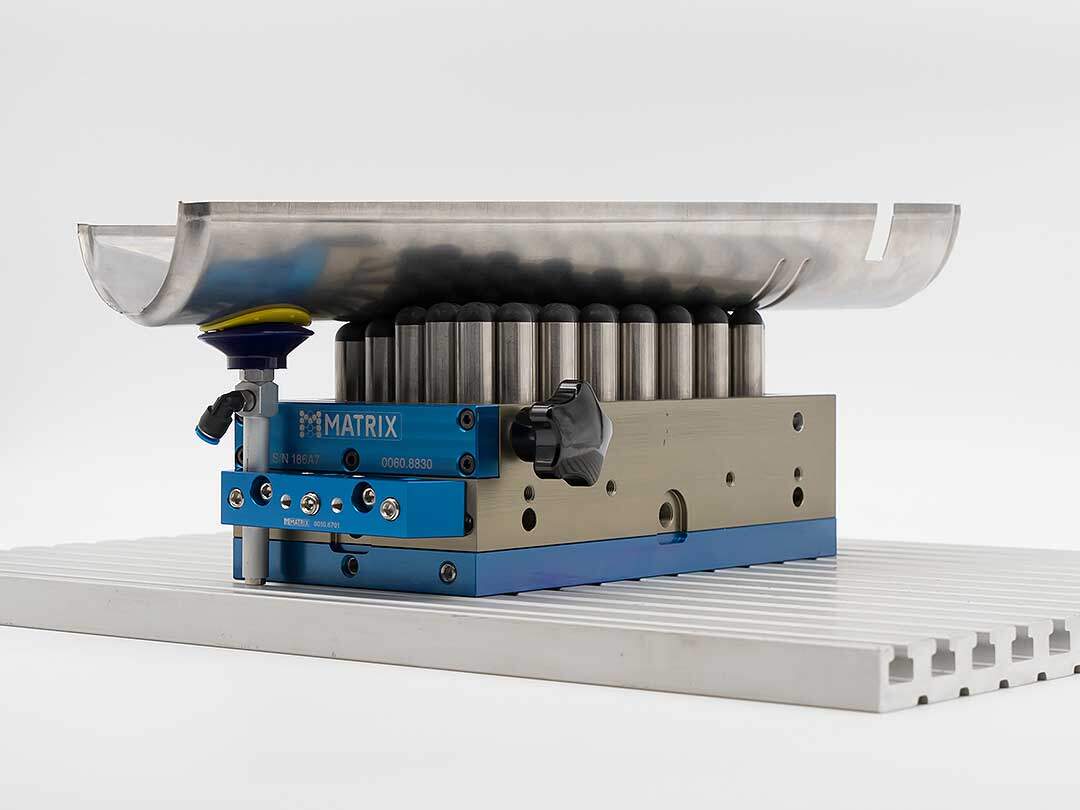

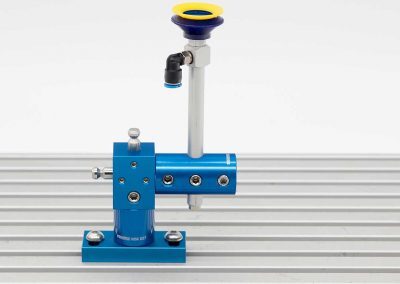

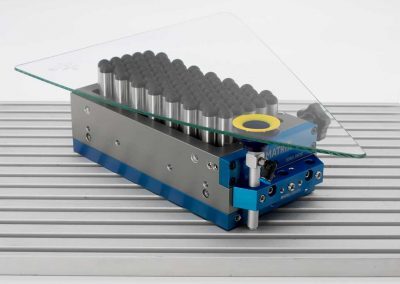

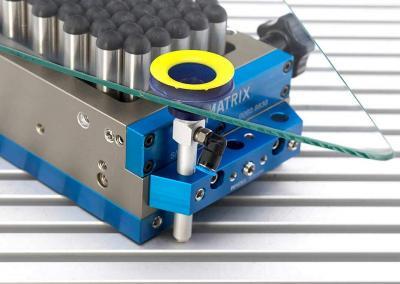

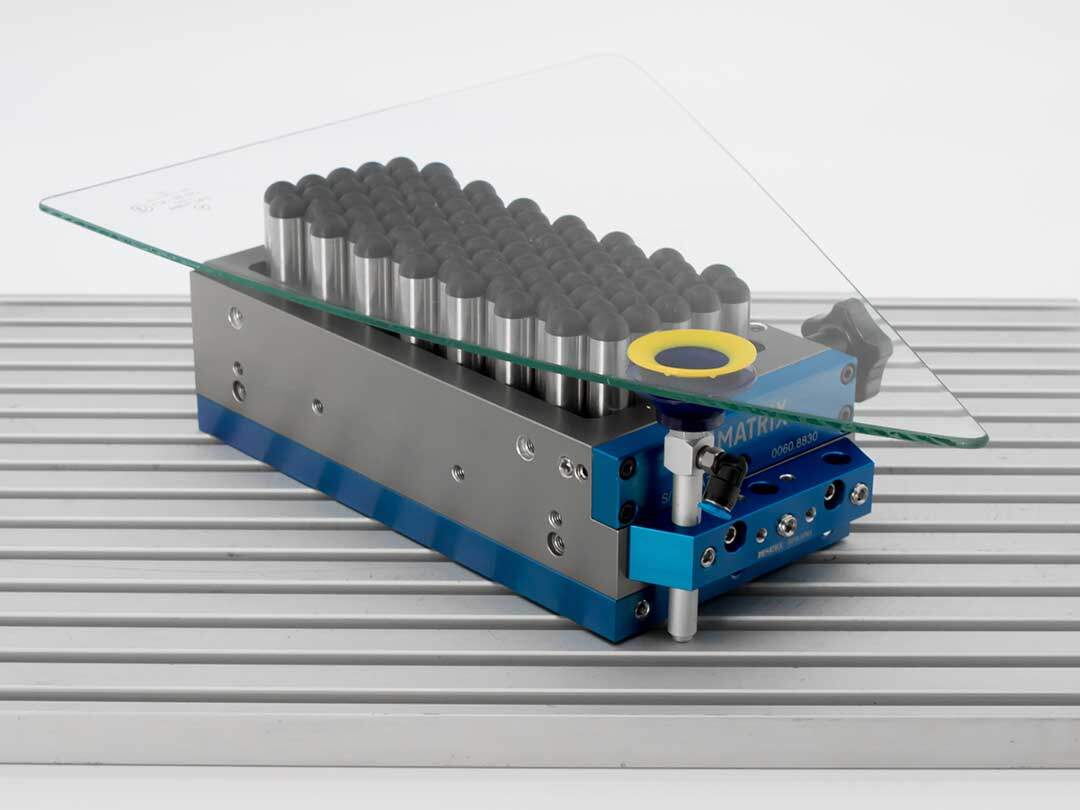

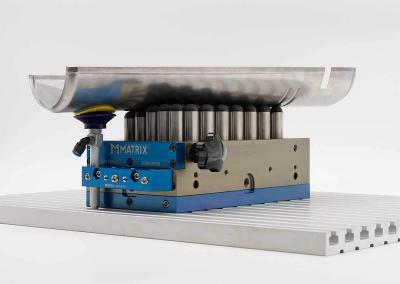

The vacuum suction cups replace the downholders as an optional fixation in the z-direction for workpieces that cannot be fastened from above. This enables measuring without any interfering contours from above. Furthermore, processes can be easier automated and offer an optimal hold for workpieces with a smooth surface.
It can be combined with the X-SUPPORT systems (-SXS, -XS, -XL), as well as with the automated modules X-PAD and FLEX-CLAMP.

Order number: 0010.1212
